Getting Started

In order to use the Ramp Editor, you need to select one of the Node types listed below, in the Nodegraph


  • Color Lookups
  • Brightness Lookups
  • RGBA Lookups
  • Gradient Maps
  • Group, Custom Procedurals and Material Nodes with exposed Attributes from Nodes above

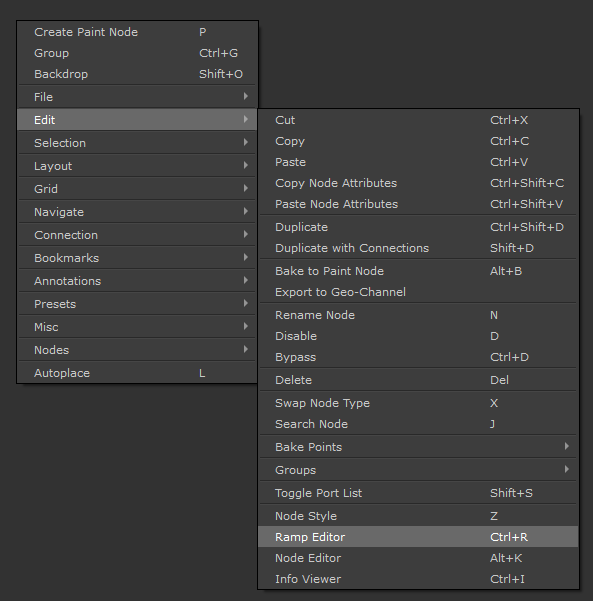

The Ramp Editor can then belaunched via the Right Mouse Click Nodegraph Context Menu or by pressing CTRL+R

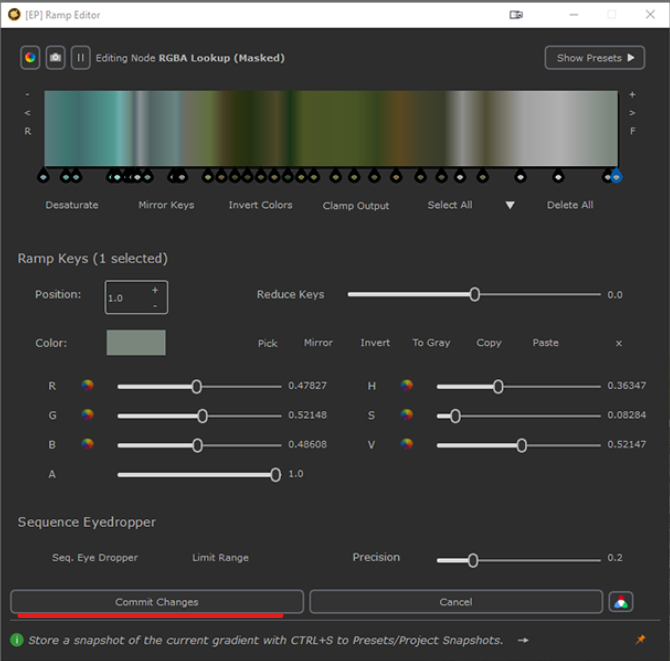

Edit the ramp to achieve the look you like. The viewport will show the live result, if you are viewing the result of the Node you are editing.

Once you are happy with the result, confirm the changes with "Commit Changes"
